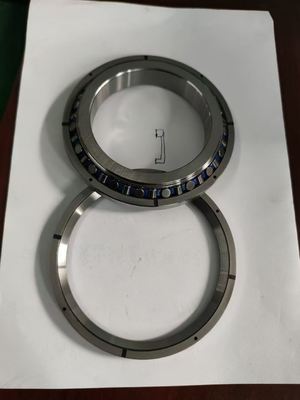

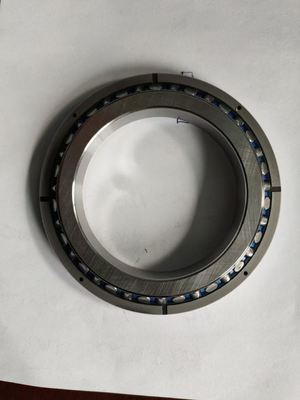

RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width
RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

Gambar besar :  RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

Detail produk:
Tempat asal: CINA
Nama merek: HDBB
Sertifikasi: ISO9001 CO GB
Nomor model: RB12025
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 pc
Harga: USD or CNY by Negotiation
Kemasan rincian: Kotak Warna Tunggal / Kemasan Industri
Waktu pengiriman: 5-7 hari kerja
Syarat-syarat pembayaran: T/T , Western Union, CNY, L/C pada pandangan
Kontak

RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width

Deskripsi
Fitur: Cross Gear Model: RB12025
Jenis segel: terbuka atau UU Berat (kg): 2.62
Bahan: Baja Chrome GCR15 Presisi: P5 P4 P2
IKO: CRB12025 NSK: NRXT12025
Menyoroti:

gear crossed roller bearings

,

P5 crossed roller bearings

RB12025 Crossed Roller Slewing Bearing Inner Rotation 120mm ID x 180mm OD x 25mm Width


Type of guide Roller
Space retainer Yes
Material GCr15
Standard lubrication method    Grease lubrication
Oil hole Yes
Sealing Oil seal at both sides
Radial clearance CC0, C0, C1
Rotation accuracy P5/P4
Working temperature -20℃ ~ 80℃
RB12025 crossed roller bearing features:

1. Integrated inner ring with separable outer ring, clearance can be adjusted.

2. Sustain radial, axial and moment loads at the same time

3. High running accuracy supplied with normal clearance, little clearance or even under a pre-load

4. Stable rotation, spacer retainer prevents rollers from skewing, thus eliminates friction between rollers, and avoid increasing of the rotation torque



RB12025 cross roller bearing installation instructions:



Cautions: For crossed roller bearings with split outer ring, when the rigidity of the mounting parts is not sufficient, stress concentration will occur at the contact area between the rollers and raceways, and the bearing performance will be deteriorated significantly.
Therefore, it is necessary to carefully examine the rigidity of housing and the strength of fixing bolts when a large moment will be applied.

1. Before installation, please clean bearing bracket, shaft, or other components, make sure there is no burrs or rough edge.
2. Fix the inner and outer rings in the axial direction by using fixing plates, etc.
3. Slightly loosen the fixing bolts of bearings outer ring during mounting.
